Raspberry Pi Power Over Ethernet (PoE) Adapter



Compatible with the Raspberry Pi Model B+, 2B and 3B



Allows a Raspberry Pi B+, 2B or 3B  PCB to be powered

over the CAT5 Cable from a PoE Router





*            +5 Volts at up to 1.25 Amps Output



*            Plugs directly into Raspberry Pi PCB



*            Conforms to IEEE 802.3af  Standard



*            Powered from remote ‘PoE’ Switch



*            NO Fan - more reliable than units with fans



*            GPIO and +5V Output Connectors



*            CE Marked - meets relevant UK and CE Directives (EMC, ROHS, WEEE)

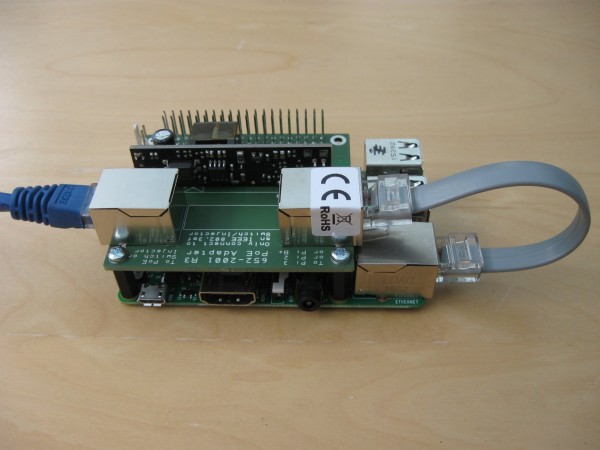

The Xtronix ‘Power Over Ethernet’ (PoE) adapter is designed to be plugged directly on to a Raspberry Pi printed circuit board and to supply +5 Volts to the Raspberry Pi. The adapter fully conforms to the IEEE 802.3af Power over Ethernet standard.



It is intended to be powered by an IEEE 802.3af compatible Injector where power is supplied over the Ethernet Cable. A 2 pin connector allow supplies +5 Volts to user equipment and a 40 Way connector allows the user to connect to the Raspberry Pi GPIO connector. Plastic pillars and screws allow the PCB to be fixed to the Pi B+, Pi 2B or Pi 3B PCB.





The Xtronix ‘Power Over Ethernet’ (PoE) adapter is designed to be plugged directly on to a Raspberry Pi printed circuit board and to supply +5 Volts to the Raspberry Pi. The adapter fully conforms to the IEEE 802.3af Power over Ethernet standard.



GPIO Connector

The GPIO connector and the adapter PCB (CONN2) allows the user to connect to the Raspberry Pi PCB GPIO. The pin out of this connector is the same as the Raspberry Pi PCB GPIO connector P1. It is a 40 way connector.



+5V Connector

The 2 way connector on the adapter PCB allows the user to plug in a power supply lead to power external equipment fron the +5 volts on the PoE adapter. A suitable mating connector is a Molex KK series (0.1”) shell and crimps.



There is a You-Tube Video showning how to use the product here: Xtronix Raspberry Pi B+ and 2 PoE Video





 Adapter Specifications

 Nominal Voltage Output  5 Volts DC
 Maximum Output Current  1.25 Amps Continuous (assumes suitable PoE injector) @ 40’C ambient
 Nominal Input Voltage  48 Volts DC via Ethernet Cable (38 to 57 Volts DC)
 Power Injector  IEEE 802.3af compatible Injector
 Temperature Range  0 to +40°C (ambient air temperature around the adapter)
 Humidity  +5 to +80% Non Condensing
 Power Connector  2 Way 0.1” Molex (provides +5V to external devices)
 GPIO Connector  40 Way 2 Row 0.1” Header – pin out as per Raspberry Pi PCB B+ and 2
 CE Marked  Yes – Safety, EMC, ROHS and WEEE
 Items Supplied  Adapter PCB Assy 652/9001 R3, short Ethernet cable, spacer, M2.5 screws
 Compatibility  Raspberry Pi Models B+, 2B and 3B

  Price  One Off - UK Pounds £24.00 (Free Postage and Packing to UK)

 Availability  IN STOCK - Click the 'Buy Now' button below to go to the eBay listing

 Distributors   Xtronix Ltd only sells this product via the eBay listing, we do not have any distributors from which this product can be purchased.



Buy Now Button - Adapter               Download Datasheet Button



To see how much power your Raspberry Pi PCB may require, see this table: Raspberry Pi Power



NOTE: Description, specifications and price may be changed without notice
